产品详情介绍

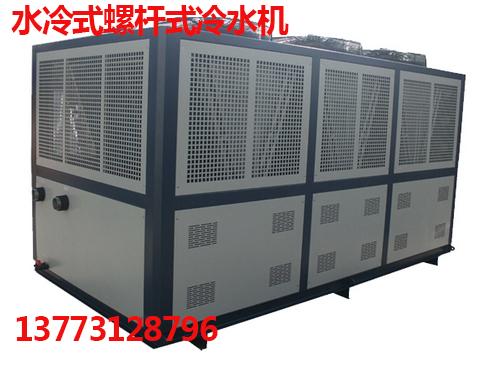

水冷式螺杆式冷水机是由冷水机厂家专业提供。厂家直销,全国送货上门!

缩机高低压保护,内过热保护
低水位报警装置,低水温防冰警报
采用欧美日进口压缩机(汉钟莱富康)
制冷系统焊接口采用无氧焊接法,减少氧化物,表面光滑
节流部件采用丹麦丹佛斯、美国艾柯
电磁阀过滤器采用丹麦丹佛斯
采用不锈钢板式,盘管式,殻管式,翅片式高效换热器
RS485通讯功能,实现自动化管理
电器采用OMRON.FUJI.TE.LGMOELLER.SCHNEIDER
控制方式:采用进口微电脑或PLC控制
安全保护完善,故障显示,维修、保养无需专业人员
高效率之蒸发器及冷凝器,可节省能源30%以上
控制温度:5-35℃,控制精度:±2℃
High/low pressure protection for the compressor and overheating protecttion inside the machine
Low water level alarm and low water temperature alarm and low water temperature alarm
Imported compressor from Europe,US and Japan(Hanbell Refcomp)
Refrigerating system welded with oxygen free method ,to reduce oxides and ensure the smooth surface
Throttle components fromAlco(US)and Danfoss(Denmark)
Electromagnetic valve filter adopt from Danfoss(Denmark)
Stainless plate,coil,shell and tube or fin type efficient hent exchanger
RS485 communication function,to realize automatic management(optional)
Electrical devices supplied from OMRON,FUJI.TE.LG.MOELLER,and SCHNEIDER
Control mode: imported micro-computer or PLC(optional)
Perfect safety protection, failure display, and not requiring professional personnel for maintenance
Highly efficient evaporator and condenser , to save over 30% energy
Temperature controlled5-35℃:precision controlled ±2℃

螺杆水冷机组规格参数表(一)


参数            型号AC-140WSAC-180WSAC-200WSAC-255WSAC-370WSAC-410WSAC-510WSAC-580WSAC-620WSAC-790WSAC-830WS
制冷量kcal/h103458135794147834197800291712321124403512478418496822635454678454
kw120.3157.9171.9230339.2373.4469.2556.3577.7738.9788.9
总输入功率kw30.738.542.25679.688.5108.5126.6130.6167177.3
最大运行电流A51.664.77194.1133.8148.8182.5212.8219.6280.7298.1
电源
R22制冷剂冲注量kg2430364860728496108120132
控制方式感温外部均压膨胀阀
压缩机类型半封闭螺杆式
功率kw30.738.542.25679.688.5108.5126.6130.6167177.3
蒸发器类型壳管式
冰水流量m³/h20.827.329.739.7 58.5 64.4 80.9 95.9 99.6 127.4 136.0
水阻力kPa3338394545454546444444
进出水管径DN65658080100100125125
150150
冷凝器类型壳管式
冷却水流量m³/h30.239.342.957.283.8 92.4 115.5 136.6 141.7 181.2 193.2
水阻力kPa4343454848484949494949
进出水管径DN65658080100100125125
150150
保护装置
外形尺寸mm21502230240024302720272027703070307034803500
mm7857858859701010103011001100110011001210
mm13501400144016231750186019501970200020802200
机组重量kg8401000113014201800207024302570272033603477














1、冷量系依据冰水入口温度12度,出口温度7度,冷却水入口温度30度,环境温度35度得出。

2、目录规格如有变更,恕不另行通知。


螺杆水冷机组规格参数表(二)


制冷量kcal/h23048030272032955244100851944065016071552085140098470012900001416420
kw268352383.2512.8604756832990114515001647
总输入功率kw637986.6114.8130163.4181.6211241309343
最大运行电流A105.8132.8145.6193217274.6305.4354.6405520576
电源
R22制冷剂冲注量kg48607296108120144156180228240
控制方式感温外部均压膨胀阀
压缩机类型半封闭螺杆式
功率kw31.5*239.5*243.3*257.4*265*281.7*290.8*2105.5*2120.7*2154.5*2171.3*2
蒸发器类型壳管式
冰水流量m³/h46.2 60.7 66.1 88.4 104.1 130.3 143.4 168.6 197.8 264.9 284.0
水阻力kPa4545454644444450534650
进出水管径DN80100100125150150150150200250250
冷凝器类型壳管式
冷却水流量m³/h66.286.2 94.0 125.5 146.8 183.9 202.7 219.2 257.1 344.3 398.0
水阻力kPa4848454949494942465042
进出水管径DN65*265*280*280*2100*2100*2100*2125*2125*2150*2150*2
保护装置
外形尺寸mm24302700270030003400370040004100425045004700
mm13701370147014701500150016101600165017501800
mm17231760176018501950195020502050210022002250
机组重量kg15001800220030003400400044204660534060306230
1、冷量系依据冰水入口温度12度,出口温度7度;冷却水入口温度30度,环境温度35度得出。
2、目录规格如有变更。恕不另行通知。
